Description

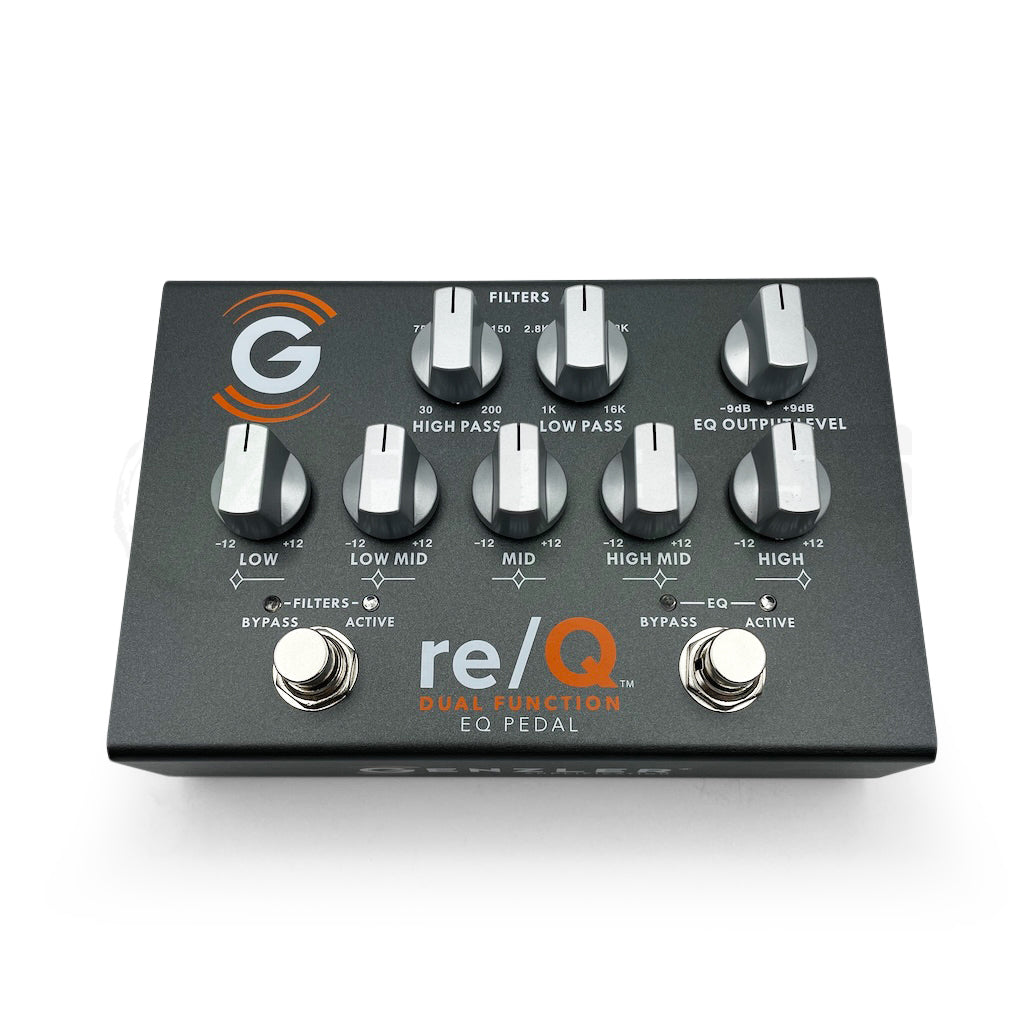

eq overdrive pedal Genzler re/Q Dual Function EQ Bass Pedal5 BANDS OF EQ CONTROL HI & LO PASS FILTERS ALL ANALOG CIRCUITRY FREE SHIPPING IN THE USA EXPERT TECHNICAL SUPPORT IN STOCK MEANS IN STOCK DESCRIPTION The re Q Dual Function EQ pedal is a versatile and expressive tool for use with a variety of instruments: bass guitar, acoustic and electric guitars. This swiss army knife offers 2 specific and separate filter networks, HPF and LPF filters with on off switching and a 5 band EQ network, with its own on
5 BANDS OF EQ CONTROL
HI & LO PASS FILTERS
ALL ANALOG CIRCUITRY
DESCRIPTION
The re/Q Dual Function EQ pedal is a versatile and expressive tool for use with a variety of instruments: bass guitar, acoustic and electric guitars. This “swiss army knife” offers 2 specific and separate filter networks, HPF and LPF filters with on/off switching and a 5 band EQ network, with its own on/off switching. This all makes the Re/Q pedal an essential tool for enhancing an instrument's tone or cleaning up room dependent issues for optimal performance.
The re/Q™ Dual Function EQ pedal is a low noise, all analog multi-function HIGH PASS FILTER – LOW PASS FILTER and 5 BAND EQ pedal that gives the player complete tonal control over the cut-off of the extreme low and high frequencies, plus 5 bands of peak-dip equalization.
The filter section is foot switched independently from the EQ section, and there is additional make-up gain or cut after the EQ for balancing of levels or to act as an additional boost/cut function when the EQ is switched into the signal path.
The re/Q Dual Function EQ pedal provides an EQ Output level of +/- 9dB. This versatile design allows the pedal to be used as a clean boost in some applications. It also offers another level of versatility as it accepts nearly any power supply; 9 – 18 Volts, either polarity. (Power supply not included).
This pedal ships promptly and directly from Genzler.
TECHNICAL
Dimensions:
6” [15.2cm] Long
4.1” [10.4cm] Deep
2.3” [5.8cm] High
Weight: 1.3 Lbs. [0.6Kg]
Accepts Power Supplies From 9VDC – 18VDC (low noise type), Either Polarity (auto detecting) 40mA Max — (Power Supply Not Included)
FEATURES
EQ Output Level Control
5 Band Fixed EQ Network
High-Pass and Low-Pass Filter
Low-noise, Silent Switching Circuitry
Rugged Stomp Switches
Lightweight Aluminum Chassis
SPECIFICATIONS
Input Impedance: >1M ohm
Output Impedance: 1k ohm
HPF: 30Hz – 200hz
LPF: 1kHz – 14kHz
EQ Filter Points:
- LOW: 90 Hz
- LOW MID: 250Hz
- MID: 630Hz
- HIGH MID: 1.3kHz
- HIGH: 2.6kHz
EQ Band Control Range: +/- 12dB
EQ Output Level Control Range: +/-9dB
Input Sensitivity (nominal): -10dBu to -20dBu (instrument level)
Input Level (maximum): 0dBu (9V supply), +5dBu (12V supply), +10dBu (18V supply)
Output Level (nominal): -10dBu to -20dBu (instrument level)
Output Level (maximum): +9dBu (9V supply) +14dBu (12V supply), +20dBu (18V supply)
